Biliary atresia is a relatively rare obstructive condition of the bile ducts causing neonatal jaundice that first appeared as a distinct entity in the Edinburgh Medical Journal in 1891. The concept of “correctable” and “noncorrectable” was introduced in 1916, eventually followed by a classification according to macroscopic and cholangiography findings; type I: atresia of the common bile duct; type IIa: atresia of the common hepatic duct; type IIb: atresia of the common bile duct and the common hepatic duct; and type III: atresia of all extrahepatic bile ducts up to the porta hepatis ( Fig. 41.1 ). Most patients have type III. In patients with a patent common bile duct and cystic duct (correctable type; 5% of cases), the gallbladder can be anastomosed to the porta hepatis. However, in more than 90% of cases, no patent extrahepatic ductal structures are found at the porta hepatis (i.e., “noncorrectable” type). Davenport proposed a clinical classification comprising four broad types; syndromic biliary atresia : coexistence of biliary atresia splenic malformation (BASM) and cat-eye syndrome associated with chromosomal 22 aneuploidy; cystic BA , which is cystic change in an obliterated biliary tract; cytomegalovirus (CMV) – associated BA with positive serology immunoglobulin M (IgM); and isolated BA . BASM appears to exhibit higher prevalence rates in European and North American populations, typically ranging from 10% to 15%, compared to Chinese or Japanese cohorts. This syndrome is characterized by distinct features including anomalies of the spleen such as polysplenia, double spleen, or asplenia, as well as situs inversus, preduodenal portal vein, complete absence of the intrahepatic vena cava, and various cardiac anomalies. Cat-eye syndrome, although less frequently encountered, can sometimes perplex surgeons as its presentation may precede the diagnosis of biliary atresia. Anorectal malformation, often necessitating early colostomy within the first week of life, is a prominent feature. Additionally, the syndrome is characterized by coloboma (a congenital hole in one of the structures of the eye) and congenital cardiac anomalies. Genetically, affected children typically exhibit aneuploidy involving chromosome 22. Despite the first successful surgical treatment for correctable biliary atresia being reported in 1928, only a few correctable cases survived long term over the next three decades. In the 1950s and 1960s, procedures for treating noncorrectable biliary atresia were developed, but none provided consistent biliary decompression. Moreover, timing of operative intervention was somewhat controversial because of reports of “spontaneous” cures, and a rather mystical belief that a totally fibrotic extrahepatic ductal system might subsequently become patent, justifying repeated exploratory surgery. In 1959 the now common Kasai hepatic portoenterostomy procedure was described for the first time and ended a long, hopeless era for patients with noncorrectable biliary atresia. Unfortunately, Kasai’s original portoenterostomy procedure was published in Japanese and received little attention until it was published in English in 1968. For Kasai’s original portoenterostomy to achieve effective bile drainage in about 50% of patients, early repair was considered to be crucial, performed ideally by the age of 2 months. If performed after the age of 4 months, effective postoperative bile drainage was observed in only 7% of patients. Kasai’s portoenterostomy gradually gained popularity in the United States, and by the 1990s modified hepatic portoenterostomies were being performed in more than 90% of infants diagnosed with biliary atresia. We became concerned about the modifications that had been made over the years to improve outcomes and reviewed a video ( Video 41.1 ) of Professor Kasai performing his original hepatic portoenterostomy and identified valuable technical points. Interestingly, Kasai’s original portal dissection was actually quite shallow and limited, resulting in a narrow portoenterostomy anastomosis, with sutures placed shallowly at 2 and 10 o’clock where the native right and left bile ducts would normally have been, probably to minimize injury to any microscopic bile ducts that may have still been present. Kasai’s original procedure was particularly effective for achieving bile drainage because the surgical principles Kasai advocated for focused specifically on the physiologic and anatomic features found in the liver in babies with BA.
Morphologic classification of biliary atresia based on macroscopic and cholangiographic findings. Type I: obliteration of the common bile duct; type IIa: obliteration of the common hepatic duct; type IIb: obliteration of the common bile duct, hepatic and cystic ducts, with cystic dilatation of ducts at the porta hepatis, and no gallbladder involvement; type III: obliteration of the common, hepatic, and cystic ducts without anastomosable ducts at the porta hepatis.
From Redrawn VJ Desmet, F Callea. Cholestatic syndromes of infancy and childhood. In: D Zakim, TD Boyer, eds., Hepatology: A Textbook of Liver Disease . Vol 2, 2nd ed. Saunders; 1990:1355–1395.
Video 41.1 Laparoscopic Kasai.
Since liver transplantation has become a viable treatment option for liver failure in children, BA is now the most common indication in children. The combination of hepatic portoenterostomy and liver transplantation has transformed a disease that was nearly universally fatal in the 1960s into one with an overall 5-year survival of about 90%. Infants whose jaundice does not resolve after portoenterostomy, or those with complications associated with end-stage chronic liver disease related to BA, will usually require liver transplantation within the first few years of life. Despite the debate over whether hepatic portoenterostomy or primary liver transplantation should be performed as the initial procedure for BA, the consensus among pediatric surgeons around the world is that hepatic portoenterostomy is the most reasonable first choice. ,
Currently, we perform a modified version of Kasai’s original portoenterostomy executed according to Kasai’s principles using minimally invasive surgery (MIS), despite heated discussion about the suitability of MIS for hepatic portoenterostomy in infants with BA.
Incidence
The incidence of BA varies widely around the world. For example, the incidence of BA in Europe is 1 in 18,000 live births; France: 1 in 19,500 live births; UK and Ireland: 1 in 16,700 live births; Sweden: 1 in 14,000 live births; and Japan: 1 in 9640 live births. The highest recorded incidence is in French Polynesia (1 in 3124 live births). There is a slight female preponderance.
A review of BA and its treatment including incidence, seasonality, and age at the time of hepatic portoenterostomy in the United States identified the overall incidence as 4.47 per 100,000 live births, with Asian, Pacific Islanders, and African Americans having higher incidences than Caucasian Americans.
BA incidence has increased annually by an average of 8% from 1997 to 2012 ( P < .001). There is no evidence of seasonality ( P = .69). Isolated biliary atresia comprises up to 85% of cases in the United States, but it is far from homogenous with variations in the time of presentation, degree of inflammation, and extent of obliteration in the biliary tree.
Interestingly, syndromic BA is significantly less frequent in China compared with the West (0.5 vs. 6.5%–10.2%, respectively). A possible relation between syndromic BA and maternal diabetes has been reported as well as an increased frequency of mutations of the CFC1 gene. ,
Pathogenesis
There remains considerable debate regarding the origins of biliary atresia, particularly regarding whether it is present at birth (congenital) or develops later (acquired). Complicating this discussion is the recognition that biliary atresia is not a singular disorder but rather a spectrum of related conditions, each with its own distinct characteristics and potentially shared underlying causes. While these variants typically manifest with common symptoms such as pale stools, jaundice, and biliary obstruction during infancy, the precise connections between them are subject to ongoing interpretation.
Various etiologic mechanisms for biliary atresia have been postulated, including intrauterine or perinatal viral infection, immunologically mediated inflammation and other autoimmune/genetic factors, exposure to toxins, abnormal ductal plate remodeling, vascular or metabolic insult to the developing biliary tree, and pancreaticobiliary malunion. Kilgore and Mack reported the most recent investigations into the pathogenesis of biliary atresia.
Reovirus type III infection, rotavirus, CMV, papillomavirus, and Epstein–Barr virus have all been proposed as possible etiologic agents, but conclusive evidence is lacking. In one report, CMV infection was found in 4 of 10 patients with biliary atresia and reovirus infection has been found in the livers of up to 55% of biliary atresia patients versus 10%–20% in a control group. , Evidence of viral infection in children with BA is inconsistent in the literature, although several viruses have been used to create animal models that may be valuable for assessing the pathogenesis and treatment of BA.
Generally, BA is not considered an inherited disorder. However, genetic mutations that result in defective morphogenesis may be important in syndromic BA associated with other congenital anomalies, including interrupted inferior vena cava, preduodenal portal vein, intestinal malrotation, situs inversus, cardiac defects, and polysplenia, likely due to a developmental insult occurring during differentiation of the hepatic diverticulum from the foregut of the embryo. Mutations of the CFC1 gene, which is involved in left–right axis determination in humans, have been identified in a few patients with syndromic BA.
Transgenic mice with a recessive deletion of the inversin gene have situs inversus and an interrupted extrahepatic biliary tree. The importance of the macrophage migration inhibitory factor gene, which is a pleiotropic lymphocyte and macrophage cytokine in BA pathogenesis, has also been reported. Other studies have identified abnormalities in laterality genes in a small number of patients with BA, including the transcription factor ZIC3. A high incidence of polymorphic variants in the jagged -1, keratin -8, and keratin -18 genes have also been described in a series of 18 children with BA. , Taken together, the increased incidence of nonhepatic anomalies in children with BA and genetic mutations reported in subsets of patients with laterality defects suggest that multiple genes are involved, each affecting a small number of patients.
Intrahepatic bile ducts are derived from primitive hepatocytes that form a sleeve (the ductal plate) around the intrahepatic portal vein branches and associated mesenchyme early in gestation. Remodeling of the ductal plate in fetal life results in the formation of the intrahepatic biliary system. This is supported by similarities in cytokeratin immunostaining between biliary ductules in BA and normal first-trimester fetal bile ducts, suggesting that nonsyndromic BA might be caused by a failure of bile duct remodeling at the hepatic hilum, with persistence of fetal bile ducts poorly supported by mesenchyme.
Several studies have investigated whether bile duct epithelial cells are susceptible to an immune/inflammatory attack because of abnormal expression of human leukocyte antigen antigens or intracellular adhesion molecules on their surfaces. , A greater than threefold increase in HLA-B12 antigen has been found in babies with BA compared with controls, particularly in those with no associated malformations. Aberrant expression of class II HLA-DR antigens on biliary epithelial cells and damaged hepatocytes in patients with biliary atresia may render these tissues more susceptible to immune-mediated damage by cytotoxic T cells or locally released cytokines. Increased expression of intercellular adhesion molecule-1 (ICAM-1) has been noted on bile duct epithelium in patients with biliary atresia, a finding that may play a role in immune-mediated damage. Strong expression of ICAM-1 has also been found on proliferating bile ductules, endothelial cells, and hepatocytes in biliary atresia. A direct relationship exists between the degree of ductal expression of ICAM-1 and disease severity, suggesting that ICAM-1 might be important in the development of cirrhosis.
Interest has also focused on costimulatory molecules. Two processes are involved in the activation of T lymphocytes by antigen-presenting cells. One relates to the expression of major histocompatibility complex class II molecules, which interact directly with T-cell receptors. The other depends on the expression of B7 antigens on antigen-presenting cells, and provides the second (costimulatory) signal to T lymphocytes through CD28. In postoperative BA patients with good liver function, costimulatory antigens (B7-1, B7-2, and CD40) are expressed only on bile duct epithelial cells, whereas in patients with failing livers these markers are found on the surfaces of Kupffer cells, dendritic cells, and sinusoidal endothelial cells and in the cytoplasm of hepatocytes. These findings suggest that the biliary epithelium and hepatocytes in biliary atresia are susceptible to immune recognition and destruction. Agents that block or prevent costimulatory pathways might offer a new therapeutic approach for reducing liver damage.
Two studies have involved comprehensive molecular and cellular surveys of liver biopsies and found a proinflammatory gene expression signature, with increased activation of interferon-γ, osteopontin, tumor necrosis factor-α, and other inflammatory mediators. , These studies may prove to be helpful in delineating the molecular networks responsible for the proinflammatory response and autoimmunity thought to be involved in the pathogenesis of BA. However, none of these mechanisms appear to be mutually exclusive, and it is not clear which signs and symptoms are primary and which are secondary.
Most recently, DNA hypermethylation of Foxp3 was reported in BA infants, as well as a mouse model of biliary atresia. One study found that γδ T cells were high producers of interleukin-17 (IL-17). Blocking IL-17 resulted in decreased liver inflammation and serum bilirubin levels. Furthermore, liver tissue from patients with BA at diagnosis had significantly increased levels of IL-17 mRNA. CD4 + T cells were found to be primarily responsible for IL-17 production and IL-17 stimulated macrophage influx and biliary injury in a mouse model.
The etiology of biliary atresia remains unknown; however, current research suggests there is a complex interplay of genetic predisposition, virus trigger and progressive autoimmunity, culminating in bile duct injury, fibrosis, and biliary cirrhosis. A clearer understanding of the factors associated with bile duct epithelial injury will provide a framework for future targeted therapeutic interventions aimed at protecting the intrahepatic biliary system from ongoing injury.
Histopathology
Early in the course of BA, the liver becomes enlarged, firm, and green. The gallbladder may be small and filled with white mucus, or it may be completely atretic ( Fig. 41.2 ). Microscopically, the biliary tracts contain inflammatory and fibrous cells surrounding miniscule ducts, which are probably remnants of the original embryonic duct system. The liver parenchyma is fibrotic and shows signs of cholestasis. Proliferation of biliary neoductules is seen. This process develops into end-stage cirrhosis if adequate biliary drainage cannot be achieved. These early changes are often nonspecific and may be confused with neonatal hepatitis and metabolic diseases.
Type III biliary atresia with an enlarged, firm, green liver and hypoplastic small gallbladder was found in this infant.
It is generally accepted that the pathologic changes seen in BA are panductal, affecting the intrahepatic biliary tree as well as the extrahepatic bile duct system. Intrahepatic bile ducts may be narrowed, distorted, or irregular. Proliferation most likely results from disturbances in formation of the ductal plate as well as ductular metaplasia of hepatocytes. , Some authors think that damage to the extrahepatic biliary system is a secondary phenomenon caused by obliteration. This theory is strongly supported by the fact that outcomes are better if hepatic portoenterostomy is performed early. The intrahepatic biliary tree is important not only pathologically, but also clinically. The degree of damage that has already occurred in the intrahepatic biliary system is actually responsible for much of the morbidity after hepatic portoenterostomy.
Diagnosis
Signs suggestive of BA are jaundice, pale stools, and hepatomegaly. Meconium staining may be normal, and feces may be yellow during the neonatal period in more than half of patients, but the urine gradually turns dark brown. Although infants may be active and grow normally, anemia, malnutrition, and growth retardation ensue because of malabsorption of nutrients and fat-soluble vitamins. Jaundice that persists beyond 2 weeks should no longer be considered physiologic, particularly if the elevation in bilirubin is mainly in the direct fraction. Neonatal hepatitis and interlobular biliary hypoplasia are the most likely differential diagnoses and must be excluded. Conventional liver function tests (LFTs) alone cannot be used to diagnose BA.
Although several diagnostic protocols have been published, the importance of early diagnosis cannot be overemphasized ( Box 41.1 ). , A definitive diagnosis of BA requires further investigations, including special biochemical studies, tests to confirm the patency of the extrahepatic bile ducts, and needle biopsy of the liver. Many surgeons consider liver biopsy to be the most reliable test for establishing diagnosis. , Serum lipoprotein-X is positive in all patients with BA, although it may also be positive in 20%–40% of patients with neonatal hepatitis. Serum bile acid levels increase in infants with cholestatic disease, but both the total bile acid level and the ratio of chenodeoxycholic acid to cholic acid have no value for differentiating BA from other cholestatic diseases. Hyaluronic acid, which has been considered a serum marker for liver function, has also been reported to be a biochemical marker for evaluating infants with biliary atresia. Recent studies, primarily conducted in Asian populations, suggested matrix metallopeptidase-7 as a promising biomarker for BA diagnosis, showing high sensitivity and specificity. Additionally, osteopontin, a proinflammatory cytokine associated with liver fibrosis, has been implicated in BA pathogenesis. However, a Western center demonstrated that despite the observed association with liver fibrosis, neither metallopeptidase-7 nor osteopontin levels exhibited sufficient sensitivity or specificity to serve as standalone diagnostic or prognostic markers. , The potential for various new markers and methods to be used in diagnosing BA have been studied with promising results; for example, the diagnostic value of circulating microRNAs (miRNAs) like miR-200b/429 cluster, matrix metalloproteinase-7, stool proteins, interleukin-33, Th17-associated cytokines, and urinary metabolites alpha-aminoadipic acid and N -acetyl- d -mannosamine, as well as the role of antismooth muscle antibodies (ASMA), heat shock protein 90 (HSP90), and CD56-positive cells. These markers show promising sensitivity and specificity in differentiating BA from other cholestatic conditions. However, further studies are needed to validate and improve these diagnostic methods.
Box 41.1
Diagnosing Biliary Atresia
Routine Assessments
-
Stool color
-
Consistency of the liver on palpation
-
Conventional liver function tests plus γ-glutamyl transpeptidase
-
Coagulation (prothrombin time, activated partial thromboplastin time)
-
Ultrasonography
-
Hepatobiliary scintigraphy
Specific Investigations
-
Histobiochemical
-
Hepatitis A, B, C serology
-
TORCH titers
-
α1-Antitrypsin
-
Serum lipoprotein-X
-
Serum bile acids
-
Confirmation of extrahepatic bile duct patency
-
Duodenal fluid aspiration
-
Endoscopic retrograde cholangiopancreatography (ERCP)
-
Near-infrared reflectance spectroscopy
-
Needle biopsy
-
Direct observation (open or laparoscopic)
-
Surgical cholangiography
TORCH: toxoplasmosis, other, rubella, cytomegalovirus, and herpes simplex. “Other” most consistently refers to Treponema pallidum , Varicella zoster, Parvovirus B19, Epstein–Barr virus, and human immunodeficiency virus, with syphilis and measles commonly included. Zika virus has been added at some centers.
Duodenal aspiration is an easy, noninvasive, and rapid test because BA can be excluded if bilirubin-stained fluid is aspirated. Hepatobiliary scintigraphy with technetium-labeled agents is widely used for differentiating BA from other cholestatic diseases. In BA, uptake by hepatocytes is rapid, but excretion into the bowel is absent, even on delayed images ( Fig. 41.3 ). In hepatocellular jaundice, uptake is delayed owing to parenchymal disease and intestinal excretion may be present or absent. A study from Dallas investigated the accuracy of hepatobiliary scintigraphy as well as elapsed time from jaundice presentation to diagnostic intervention. BA was suspected in 234 patients from 2010 to 2020. The study evaluated its accuracy and found that while it had high sensitivity (100%), its specificity was moderate (69.2%). This suggests that while hepatobiliary scintigraphy can effectively identify BA cases, it may also yield false-positive results, leading to unnecessary delays in treatment. The study also analyzed the elapsed time from jaundice presentation to Kasai portoenterostomy and found that infants who underwent hepatobiliary scintigraphy experienced longer delays compared to those who did not, although the difference did not reach statistical significance. Operative exploration was identified as the gold standard for diagnosing BA, with expedited diagnosis and potentially reduced anesthetic exposure compared to hepatobiliary scintigraphy. The increasing severity of cholestatic liver injury in biliary atresia with advancing age underscores the critical need for early intervention to achieve optimal outcome. Ultrasonography (US) should be performed on all jaundiced infants. Hepatobiliary US will exclude other surgical causes of jaundice such as choledochal cyst and inspissated bile syndrome. In BA, the intrahepatic ducts are not dilated because they are affected by an inflammatory process. Various sonographic features have been targeted to distinguish BA from other causes of conjugated hyperbilirubinemia in infants. In BA, the gallbladder is small, shrunken, and noncontractile, and there is increased echogenicity of the liver. The presence of other associated anomalies of the polysplenia syndrome is pathognomonic of biliary atresia. Differentiation from choledochal cyst and type I BA is also rapid and simple with US. Irrespective of interobserver variation, failure to visualize the common bile duct is not diagnostic of BA because a patent distal common bile duct may be found in up to 20% of BA patients. However, an absent gallbladder or one with an irregular outline is suggestive of BA. In some cases, a well-defined triangular area of high reflectivity/echogenicity is seen at the porta hepatis, corresponding to fibrotic ductal remnants (the “triangular cord” sign) ( Fig. 41.4 ). , A recent meta-analysis found that the triangular cord sign and gallbladder abnormalities are the two most accurate and widely accepted US findings currently used for the diagnosis or exclusion of BA. In other words, a combination of the triangular cord sign and gallbladder anomalies improves diagnostic sensitivity, while absence of a common bile duct, enlargement of the hepatic artery, and the presence of hepatic subcapsular blood flow are less valuable findings for diagnosis. In fact, meticulous US focusing on the presence of the triangular cord sign and gallbladder anomalies could reduce the need for liver biopsies and hepatobiliary scintigraphy in infants suspected of having BA.
Hepatobiliary scintigraphy with technetium-labeled agents. In biliary atresia, uptake by hepatocytes is rapid, but excretion into the bowel is absent, even on delayed images. There is no biliary-to-bowel transit of the isotope at 6 hours (A) or 24 hours (B) in this baby with biliary atresia.

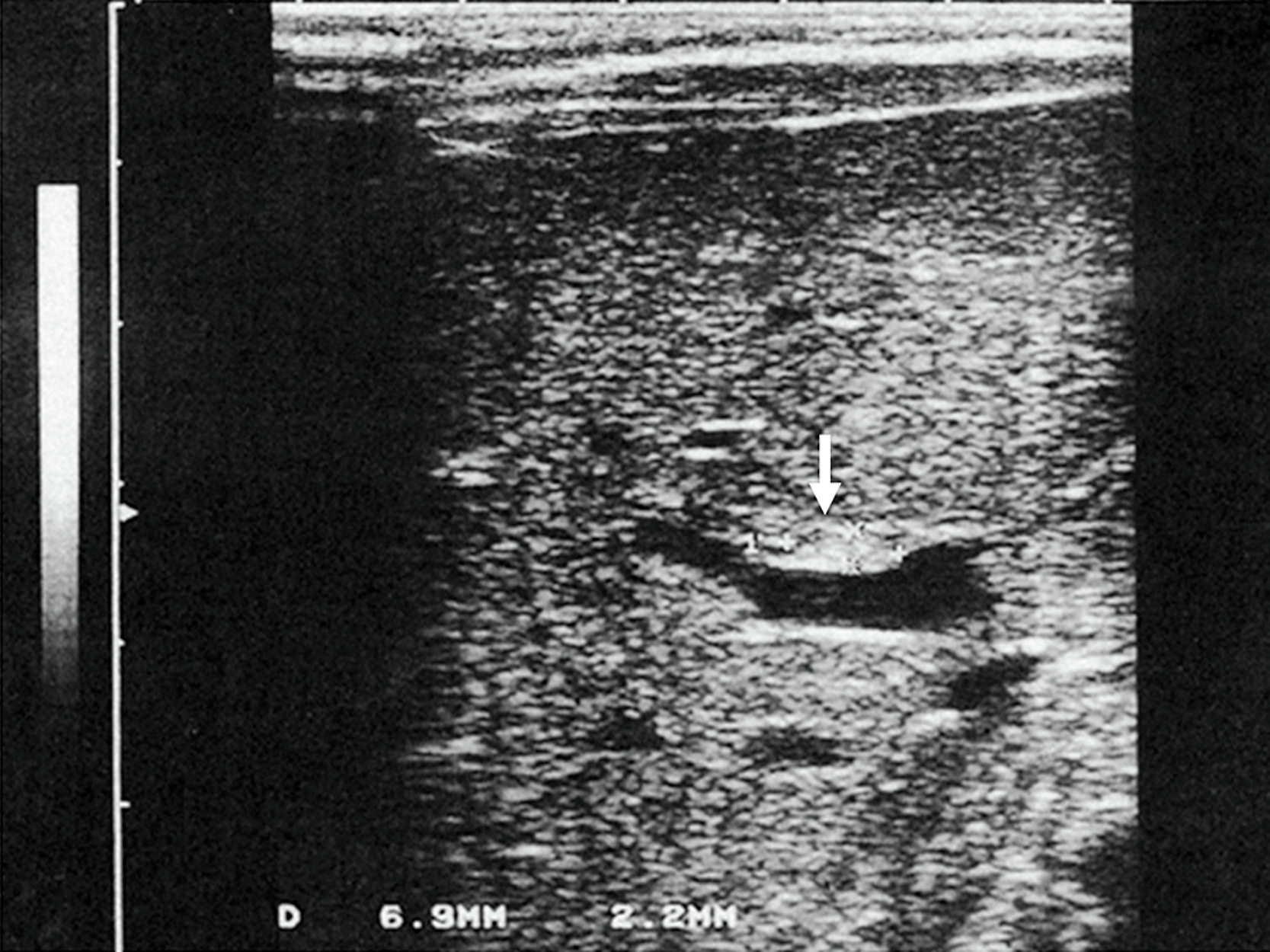

Ultrasonography shows a well-defined triangular area of high echogenicity ( arrow ) at the porta hepatis, corresponding to fibrotic ductal remnants (the “triangular cord” sign).
Nonvisualization of the fetal gallbladder on routine gestational US may be suggestive of several anomalies, ranging from gallbladder agenesis to BA. Amniotic fluid digestive enzymes, which are synthesized by the biliary epithelium, gradually decrease until 24 weeks of gestation. As it is no longer possible to differentiate between abnormally low and physiologically low levels of the enzymes after 24 weeks of gestation, the prenatal diagnosis of BA is difficult.
The most conclusive technique to differentiate among BA, biliary hypoplasia, and severe neonatal hepatitis is direct observation of the porta hepatis using laparotomy or laparoscopy, with or without cholangiography. Laparoscopy-assisted cholangiography is also an option, as is percutaneous cholecystocholangiography if an open surgical approach to diagnosis is stressful to parents of infants with cholestasis that may be caused by pathology other than biliary atresia.
Most patients with BA can be diagnosed accurately by using an appropriate combination of the abovementioned investigations.
Screening
Stool color cards are being used in high incidence areas, such as Japan, Taiwan, and China, to identify infants at possible risk for BA. Early results have been promising demonstrating earlier diagnosis, earlier hepatic portoenterostomy, and, hopefully, improved outcomes. A recent report described a two-stage screening program based on newborn bilirubin levels to identify infants at possible risk for BA prior to them becoming symptomatic. Further studies are needed to assess the feasibility and cost effectiveness of both stool color card and laboratory-based (direct bilirubin) screening programs for BA.
Patients who have received a portoenterostomy within the first 60 days of life are less likely to require a liver transplant. In one study, it was estimated that if every patient with BA underwent the Kasai operation before 46 days of age, 5.7% of all liver transplantations performed annually in France in patients younger than 16 years could be avoided.
Surgical Intervention
Preoperative Management
Most patients with BA have abnormal LFT results and vitamin K deficiency by the time of diagnosis. All infants should have parenteral vitamin K2 supplementation for several days before exploration. Bowel preparation should commence with oral kanamycin and glycerin enemas to decrease abundant colon microbiota to minimize intestinal gas. Patients should be nil by mouth for 24 hours prior to surgery. Parenteral broad-spectrum antibiotics should be administered preoperatively just before the skin incision. Preoperative blood tests should include complete blood count, coagulation profile, and LFTs.
Roux-en-Y Limb and Enterotomy for Portoenterostomy
All our Roux limbs are customized and short as we recommended, , because predetermined Roux limbs (30, 40, or 50 cm in length) will not be appropriate for the size of the patient. Moreover, they can become tortuous as the patient grows, causing stasis in the Roux limb that contributes to cholangitis. After creation of the jejunojejunostomy, the customized Roux limb should be approximated to the native jejunum for 8 cm cranially to prevent the contents of the native jejunum from refluxing into the Roux limb ( Fig. 41.5 ). A 10-mm long antimesenteric enterotomy is made next to the closed end of the Roux limb and the jejunojejunostomy should fit naturally into the splenic flexure when it is returned to the abdominal cavity. A scalpel should be used to make the enterotomy in the jejunum that will be used for the portoenterostomy anastomosis to prevent thermal injury, which could occur if diathermy is used. Thermal injury will cause scarring along the anastomotic line of the portoenterostomy and should never be used. The jejunal limb is passed through a retrocolic window to lie without tension at the porta hepatis.

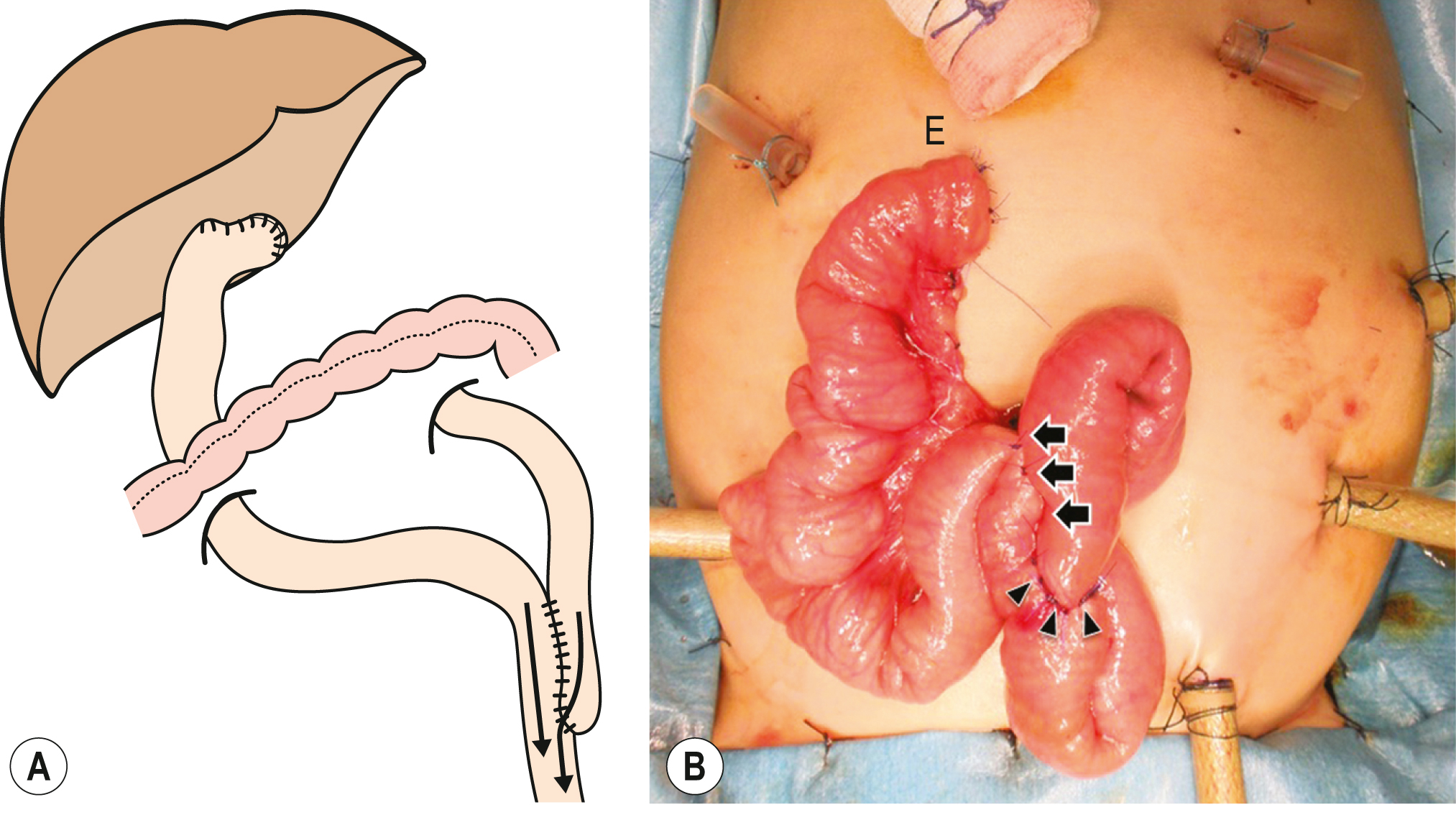

(A) Short and custom Roux-en-Y (RY) is more appropriate for the size of the patient and can prevent stasis as the patient grows. (B) The length of the RY limb is determined by exteriorizing the jejunal loop through the umbilicus and measuring the distal end (E) of the limb to be 3 cm above the xiphoid process. The jejunojejunostomy ( arrowheads ) will then fit naturally into the splenic flexure after anastomosis. Arrows show where the RY limb has been approximated to the native jejunum for 8 cm cranially to streamline flow into the distal jejunum and eliminate reflux into and stasis in the RY limb.
From Yamataka A, Lane GJ, Cazares J. Laparoscopic surgery for biliary atresia and choledochal cyst. Sem Pediatr Surg . 2012;21:201.
Open Surgical Technique
Over the past 20 years, hepatic portoenterostomy for BA has been modified to involve more extensive lateral dissection around the porta hepatis and a much wider anastomosis. , In reality the current operation is essentially an extended portoenterostomy ( Fig. 41.6C ) that barely resembles Kasai’s original procedure ( Fig. 41.6B ). This extended portoenterostomy is still widely used for the open surgical treatment of BA. The patient is placed supine on an operating table that can allow intraoperative cholangiography to be performed. An extended right subcostal incision, dividing the muscle layers, is used to expose the inferior margin of the liver. After division of the falciform and triangular ligaments, the liver is delivered from the abdominal cavity. This maneuver provides an excellent operative field for dissection of the porta hepatis, although some surgeons do not recommend this maneuver because of risk for hepatic congestion due to kinking of the hepatic vein. Cholangiography is recommended to confirm the hepatobiliary anatomy and type of biliary atresia ( Fig. 41.7 ). The fundus of the atretic gallbladder is mobilized from the liver bed, and a fine feeding tube is passed into the gallbladder through a small cholecystotomy incision. If bile is detected on aspiration of the gallbladder, a small amount of contrast material is injected. However, in most patients with BA, the lumen of the atrophic gallbladder is already obstructed, and it is impossible to insert even a 4 French catheter, so cholangiography is not possible. In such cases, macroscopic inspection of the porta hepatis should be sufficient for diagnosing BA and the hepatic portoenterostomy is performed. ,

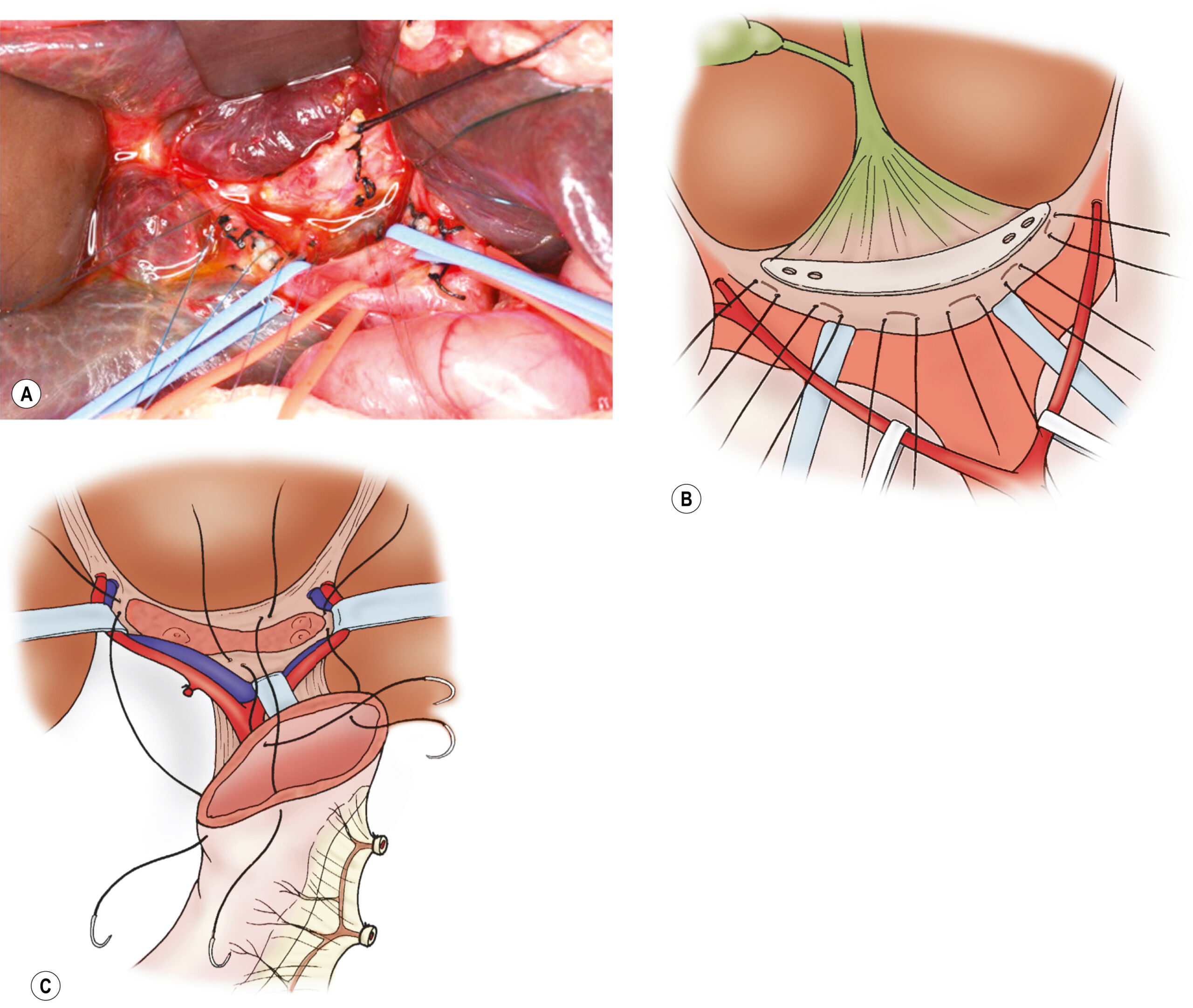

Salient features of three portoenterostomy procedures are depicted. (A) Modified Kasai portoenterostomy. Interrupted shallow sutures ( thin broken lines ) are placed in the liver parenchyma around the transected biliary remnant, except at the 2 and 10 o’clock positions, where the right and left bile ducts should be. If sutures are necessary at the 2 and 10 o’clock positions to prevent an anastomotic leak, shallow interrupted sutures ( thin dotted lines ) are be placed only in the connective tissue near the right and left hepatic arteries or the hepatoduodenal ligament at the porta hepatis. (B) Kasai’s original portoenterostomy , : a continuous suture ( looped line ) is placed in the side of the transected biliary remnant, except at the 2 and 10 o’clock positions, where sutures ( dotted lines ) are placed in the connective tissue. (C) Extended portoenterostomy. Deep interrupted sutures (bold broken lines) are placed in the liver parenchyma, even at the 2 and 10 o’clock positions.
From Nakamura H, Koga H, Wada M et al. Reappraising the portoenterostomy procedure according to sound physiological/anatomic principles enhances postoperative jaundice clearance in biliary atresia. Pediatr Surg . 2012;28:205; and From Yamataka A, Lane GJ, Cazares J. Laparoscopic surgery for biliary atresia and choledochal cyst. Sem Pediatr Surg . 2012;21:201.
(A) Intraoperative cholangiogram; noncystic type I biliary atresia. (B) Intraoperative cholangiogram suggesting type III biliary atresia.
The mobilized gallbladder is used as a guide for locating the fibrous remnant of the common bile duct. After the caudal end of the common bile duct is ligated and divided at the upper border of the duodenum, the cephalad portion of the common bile duct with the gallbladder attached is dissected above the bifurcation of the portal vein. The portal vein and the hepatic arteries are exposed along their entire courses. Vessel loops should be applied to the right and left hepatic arteries and the right and left portal branches to facilitate portal dissection ( Fig. 41.8A ).
The current favored technique for a portoenterostomy involves an extended lateral dissection around the porta hepatis with a very wide anastomosis. (A) Photograph of the initial mobilization of the gallbladder and atretic bile ducts and dissection/exposure of the porta hepatis. After the common bile duct remnants are severed from the duodenal side, the dissection proceeds cephalad, and the portal bile duct remnants are freed from the underlying structures. The portal vein ( blue ) and hepatic artery ( red ) have been encircled with vessel loops. Several small vessel branches between the portal vein to the fibrous remnant can be identified and divided between ligatures. (B) The portal bile duct remnants must be dissected 5 or 6 mm proximal to the anterior branch of the right hepatic artery on the right side and as far left as the entrance of the obliterated umbilical vein into the left portal vein. The fibrous cone is sharply transected at the level of the posterior surface with scissors or a scalpel and is removed. The fibrous cone should have an extensive transected surface, which allows a wide anastomosis. (C) The end of the Roux-en-Y limb is anastomosed around the transected end of the fibrous remnant. Sutures should not be placed into the transected surface of the bile duct remnant, because minute bile ducts may be present. As much of the transected hilar surface as possible, including all potentially usable remnants of the intrahepatic ducts in the area between and beneath the branches of the right and left portal veins, is incorporated in the anastomosis. It is important to retract the right and left portal veins and hepatic arteries to allow extensive reception of the biliary remnant to allow a wide portoenterostomy anastomosis.
The hepatic ducts usually form a cone-shaped fibrous mass anterior to the bifurcation of the portal vein. Several small vessels connecting the portal vein to the fibrous cone are divided after being ligated. The posterior aspect of the fibrous cone is freed completely. The anterior aspect of the fibrous cone and the quadrate lobe of the liver are then exposed. The fibrous biliary plate should be dissected as far as the anterior branch of the right hepatic artery on the right side and as far as the point where the obliterated umbilical vein joins the left portal vein on the left. During dissection, 5-0 or 6-0 absorbable sutures are usually placed in the liver surface posterior and caudal to the fibrous plate (see Fig. 41.8B ).
The right and left portal veins and hepatic arteries must be retracted to allow extensive resection of the biliary remnant and a wide portoenterostomy. The fibrous cone is transected sharply at the level of the posterior surface of the portal vein with scissors or a scalpel and is removed. The fibrous cone should have an extensive transected surface sufficient to allow a wide anastomosis. In other words, in an extended portoenterostomy, dissection of the porta hepatis is not confined just to the area around the base of the fibrous ductal plate. , As much of the transected surface as possible, including all potentially usable remnants of the intrahepatic ducts in the area between and beneath the branches of the right and left portal veins, is incorporated in the anastomosis.
After transection of the biliary remnant, bleeding points are controlled by packing with gauze. Diathermy should not be used as it can cause thermal injury to any microscopic bile ducts that may be patent. A liver biopsy may be performed depending on the surgeon’s preference. If intraoperative histology of the transected portal fibrous plate cannot identify patent microscopic bile ducts at the transected surface, further cephalad transection of the portal fibrous plate is recommended.
The portoenterostomy anastomosis is performed either end-to-side or end-to-end beginning posteriorly using the 5-0 or 6-0 sutures that were placed previously to the fibrous plate (see Fig. 41.8C ). Next, the anterior edge of the jejunum is anastomosed to the liver parenchyma anterior to the transected fibrous remnant with interrupted 5-0 or 6-0 absorbable sutures, including the 2 and 10 o’clock positions. There should be adequate space between the anterior margin and the remnant fibrous plate. A drain is placed in the foramen of Winslow through a stab incision in the right abdominal wall and the wound is closed.
Modified Kasai Original Portoenterostomy
In contrast to the extended portoenterostomy technique just described, in both Kasai’s original portoenterostomy and our modified Kasai procedure (see Fig. 41.6B and A , respectively), dissection of the porta hepatis is confined to the area around the base of the fibrous biliary plate, which is transected shallowly. , , As a result, the portoenterostomy anastomosis is not as wide as in the extended portoenterostomy procedure. Interrupted sutures are placed in the liver parenchyma around the outer edge of the transected biliary remnant shallowly. At the 2 and 10 o’clock positions, where the right and left hepatic ducts should be, sutures are placed very shallowly in the connective tissue near the right and left hepatic arteries or the hepatoduodenal ligament at the porta hepatis (see Fig. 41.6A ), to minimize microscopic bile duct injury. , (See Fig. 41.6 for a comparison of modified Kasai [ Fig. 41.6A ], Kasai [ Fig. 41.6B ], and extended [ Fig. 41.6C ] portoenterostomies.)
A study recently compared outcomes with respect to depth of dissection of the fibrous biliary remnant of the common bile duct performed at different periods of time as trends changed. They divided 256 cases into 4 groups; group 1 : limited dissection performed from 1972 to 1981 ( n = 91); group 2 : limited dissection performed from 1992 to 2000 ( n = 80); group 3 : extended dissection performed from 1992 to 2000 ( n = 46); and group 4 : moderately deep dissection performed from 2001 to 2014 ( n = 39). Jaundice clearance rates were 65.9%, 77.5%, 63.0%, and 87.2%, respectively; rates of early cholangitis were 60.4%, 53.8%, 37.0%, and 23.1%, respectively; redo portoenterostomy rates were 15.4%, 37.5%, 17.4%, and 5.1%, respectively; 10-year native liver survival rates were 53.8%, 60.1%, 44.1%, and 73.7%, respectively. Thus, they recommended shallow dissection of the fibrous biliary remnant of the common bile duct, but their recommended level is actually deeper than Kasai’s original and our modified Kasai portoenterostomies.
Hepaticojejunostomy
Kimura et al. reported that in correctable BA, although a wide and deep portal dissection is not required, excision of the patent common bile duct cephalad to the porta hepatis is important. Any cyst-like structure should be excised and should not be used for anastomosis to the intestine. Failure to remove all abnormal common bile duct or hepatic duct tissue may result in anastomotic stricture or cholangitis.
In another study, a series of 323 BA patients who underwent surgery between 1953 and 2004 were reviewed. Fifty were classified as type I. Of these 50, 28 had portoenterostomy and 22 had hepaticoenterostomy. Overall survival for type I patients who did not require liver transplantation was significantly better than for type II/III patients (52% vs. 33%). However, while there was a higher incidence of cholangitis in type I patients, the difference was not statistically significant.
A recent review of 200 BA patients treated surgically at one institution from 1963 to 2008 found that long-term outcome was excellent in 12 patients who had hilar cyst anatomy and underwent hepaticojejunostomy (type I cyst: 9 cases and a subtype of type II: 3 cases). The overall survival of patients with native livers in their series was 83.3%.
Minimally Invasive Kasai Portoenterostomy
The first laparoscopic Kasai portoenterostomy procedure was described in 2002. Since then, few others have been reported, probably because of a combination of the technical difficulty and negative research findings, such as increased incidence of postoperative complications and worse early clinical outcomes, compromised liver perfusion during pneumoperitoneum causing liver cell damage, and elevated intraabdominal pressure decreasing proliferation and inducing apoptosis in hepatocytes in a rat model. Also a prospective study comparing laparoscopic with conventional portoenterostomy found that although the laparoscopic procedure was feasible, survival after 24 months was worse in the laparoscopic group. In another study, there was no measurable benefit of laparoscopy over open portoenterostomy when scarring and adhesions at the time of liver transplantation were compared. In fact, a recent meta-analysis of outcome of laparoscopic portoenterostomy for BA concluded that, based on native liver and patient survival rates, laparoscopic portoenterostomy should not be performed for the treatment of BA patients. However, a 2011 study found that outcomes after laparoscopic Kasai were relatively good after a mean of 72 months (range: 33–89 months), with 50% (eight cases) of patients being jaundice-free with normal bilirubin levels.
Nevertheless, at Juntendo University, we began performing the modified Kasai portoenterostomy procedure laparoscopically in 2009. During the laparoscopic Kasai, the LigaSure is used to divide portal vein branches draining into the caudate lobe at the porta hepatis. The LigaSure generates much less lateral heat than monopolar hook diathermy; thus, thermal injury to microscopic bile ductules in the fibrous plate during dissection can be minimized. , A customized Roux limb is created by exteriorizing the jejunum through the umbilical port. After returning the Roux limb to the abdominal cavity, the portoenterostomy is then performed as described in the modified Kasai portoenterostomy (see Fig. 41.6A ).
The minimally invasive Kasai portoenterostomy is gaining support. Recently, we reported on 22 BA patients from Juntendo (type III: n = 19, type II: n = 3) who underwent modified Kasai (laparoscopic) portoenterostomies between 2009 and 2016 and have good midterm outcomes. The mean age at modified Kasai (laparoscopic) portoenterostomy was 67.1 days (range: 29–119); the mean postoperative follow-up was 4.6 years (range: 1.3–8.3); the postoperative jaundice clearance (total bilirubin ≤1.5 mg/dL) was 77.3% (17/22) at 3 months and 90.9% (20/22) at 6 months; and the survival with the native liver was 90.9% (20/22) at 6 months of age, 77.3% (17/22) at 1 year of age, 73.7% (14/19) at 2 years of age, and 81.3% (13/16) at 3 years of age. Other authors also expressed support for the MIS approach, concluding that experienced pediatric laparoscopic surgeons should reconsider laparoscopic portoenterostomy in babies with BA. Another report investigated the efficacy of laparoscopic portoenterostomy compared to open portoenterostomy in the treatment of BA while employing biochemical markers for assessment of liver function. Historically, laparoscopic surgery for BA faced skepticism due to perceived inferior outcomes compared to the traditional open approach, leading to its limited adoption in certain regions. However, recent advancements in MIS have sparked a reevaluation of laparoscopic portoenterostomy efficacy. The study encompassed 70 consecutive BA patients treated with either laparoscopic or open surgery between 2009 and 2021. Notably, laparoscopic portoenterostomy demonstrated several advantages over its counterpart, including reduced intraoperative blood loss, faster recovery times, smaller incisions, and diminished postoperative pain. Additionally, laparoscopic portoenterostomy minimizes interference with liver hemodynamics and may result in fewer postoperative adhesions, enhancing its appeal as a surgical approach. Utilizing biochemical markers such as AST, ALT, cholinesterase (ChE), c-GTP, and PLT, the study rigorously evaluated liver function in both laparoscopic and open groups. Surprisingly, despite initial concerns, the study revealed no significant differences in biochemical marker outcomes between the two groups. This suggests that laparoscopic portoenterostomy yields comparable outcomes to open portoenterostomy in terms of liver function assessment. Furthermore, subjects were classified into biochemical status categories (BSCs) based on their postoperative outcomes, with similar distributions observed between both groups. Long-term follow-up underscores the rarity of achieving normal biochemical marker after portoenterostomy, underscoring the complexities of BA management. Additionally, the study investigated the efficacy of redo-portoenterostomy in cases of deteriorating clinical status, demonstrating promising outcomes akin to nonredo cases. These findings challenge earlier negative perceptions of laparoscopic portoenterostomy and underscore its potential as a valid treatment option for BA. Nevertheless, the study calls for further research with larger sample sizes to corroborate these findings and refine treatment protocols for BA patients. In a study conducted in Nagoya, the outcomes of laparoscopic portoenterostomy and open portoenterostomy as treatments for BA were compared from 2003 to 2020. The study analyzed 119 cases of noncorrectable BA, with 53 cases undergoing laparoscopic portoenterostomy and 66 cases undergoing open portoenterostomy. Despite the laparoscopic procedure requiring a longer operative duration, it resulted in significantly reduced blood loss and faster postoperative recovery, including a shorter time for resuming oral intake and removing drains. The rate of complete resolution of jaundice was similar between the laparoscopic and open portoenterostomy groups, at 79.3% and 68.2%, respectively. Native liver survival rates were >80% for both groups for the first half year postsurgery, suggesting similar efficacy in maintaining the native liver. No intraoperative complications were reported, and readmissions for cholangitis were similar between groups.
Near-Infrared Fluorescence imaging with Indocyanine Green
Near-infrared fluorescence (NIRF) imaging with indocyanine green (ICG) improves intraoperative visualization of anatomic structures during pediatric MIS. As an aid to visualizing vascularity, it can be used for guiding resection and dissection during laparoscopic and robotic procedures. Use of NIRF requires the injection of a specific Food and Drug Administration-approved dye (ICG) that was initially used to study hepatic and cardiac function in humans. ICG is almost entirely metabolized by the liver and excreted into the bile in approximately 8 minutes. Fluorescence can be detected to a maximum depth of 10 mm. ICG enhanced fluorescence has recently proven to be valuable during MIS for hepatobiliary and pancreatic surgery as well as assessment of perfusion or lymphatic structures. After intravenous injection, ICG is rapidly combined with plasma proteins, taken up by hepatocytes, and excreted into bile and feces through the intestinal tract. The extrahepatic bile ducts of patients with BA gradually develop fibrosis due to the inflammation, until they become occluded, resulting in poor bile drainage leading to cholestasis. Therefore, ICG was not excreted smoothly in the liver of patients with BA, even if injected 12 hours before surgery. Specifically, we observed evident fluorescence in the liver but not in the extrahepatic biliary tracts (see Fig. 41.9 ). This confirms ICG fluorescence cholangiography is a minimally invasive and reliable method for ruling out BA; however, further studies are needed. ICG is also helpful in visualizing spontaneous bile flow after the fibrous cone is resected; patency can be corroborated by fluorescence in a gauze or cottonoid (see Fig. 41.10 ) or in the portoenterostomy after completion (see Fig. 41.11 ).
(A) Normal laparoscopic view with white light in a patient with BA. (B) NIRF laparoscopic view of the same patient with BA. Notice the accumulation of ICG in the liver, even after 12 hours injection before surgery. Evident fluorescence in the liver but not in the extrahepatic biliary tracts, confirming BA.
ICG is also helpful to visualize spontaneous bile flow after the fibrous cone is resected by fluorescence in a gauze or cottonoid placed in the porta hepatis.
(A) Laparoscopic view of portoenterostomy with white light (B) NIRF laparoscopic view of portoenterostomy with ICG visualizing spontaneous bile flow in the portoenterostomy after completion.
Results from different studies revealed compelling evidence supporting the diagnostic utility of ICG fluorescence cholangiography in BA cases. It has demonstrated characteristic imaging patterns consistent with BA diagnosis, including liver enlargement, gallbladder atrophy, and fibrotic bile ducts. The highlighted advantages of ICG fluorescence cholangiography over traditional intraoperative cholangiography include its simplicity, reduced procedural time, and absence of radiation exposure. However, further research is warranted to validate the broader applicability of NIRF with ICG in diagnosing BA and other hepatobiliary disorders. ,
Robotic Kasai Portoenterostomy
The application of the da Vinci Surgical System (Intuitive Surgical, Sunnyvale, CA) is progressively extending robotic surgery from adult patients to infants, proving beneficial in various pediatric cases including hepatobiliary diseases such as choledochal cysts and increasingly complex procedures like portoenterostomy. This robotic platform effectively overcomes many limitations encountered in laparoscopic surgery. Notably, tasks such as anastomotic suturing and knot tying are substantially simpler compared to their laparoscopic counterparts, primarily due to the increased comfort experienced by the operating surgeon without ergonomic constraints hindering performance. In 2007, Dutta et al. reported the successful implementation of robotic portoenterostomy in three cases, while Meehan et al. shared their experience with two cases, demonstrating the feasibility of this approach. , A recent study reported consistently successful outcomes, characterized by the absence of intraoperative complications, minimal blood loss, and favorable postoperative recovery. There was significant jaundice resolution in most patients and encouraging survival rates with the native liver at 1 year. Technical enhancements such as bipolar coagulation for portal vein tributaries and precise anastomosis substantially contribute to its efficacy. Despite its promising results, robotic portoenterostomy does present certain limitations, such as cosmetic concerns and the associated high equipment costs; additionally, the bulky size of the robotic system may result in collisions within the limited operating space. Further investigation, including prospective comparative studies and long-term follow-up, is imperative to validate its efficacy and ascertain its position in the treatment paradigm for BA.
Redo Hepatic Portoenterostomy
Bile drainage after a redo hepatic portoenterostomy may be expected only in patients who had good bile excretion initially. , Since liver transplantation is a viable treatment option, repeated hepatic portoenterostomy should only be considered for selected patients in whom good bile flow suddenly ceases, or in those patients who might benefit from a delay in transplantation.
Long-term follow-up of biliary atresia patients who became anicteric after redo portoenterostomy with native livers has been disappointing. In one study, the long-term rate of becoming anicteric with an intact native liver after redo portoenterostomy was low, at 7/46 (15.2%), and the quality of life of was very poor as a result of portal hypertension, cholangitis, esophageal varices, splenomegaly, and thrombocytopenia.
Laparoscopic redo portoenterostomy has recently been described and may be associated with less adhesions than open redo, thus posing fewer problems at the time of liver transplantation, but the crucial issue is the indication for redo portoenterostomy versus the availability of transplantation.
At Juntendo, the laparoscopic redo portoenterostomy involves opening the anterior jejunal wall from the previous portoenterostomy and exposing the cut surface of the fibrous biliary remnant. After removing the most superficial layer of tissue from the cut surface of the biliary remnant, eight vertical slit incisions, each 2–4 mm in depth, are made in the surface to improve bile flow while preventing injury to tissue that needs to be preserved (see Fig. 41.12 ). In order to optimize efficacy while minimizing potential harm, it is necessary to avoid placing the slits too closely together. Therefore, we opted for four evenly distributed slits on each side of the transected biliary remnant. The rationale behind creating multiple slits is to ensure that in case some slits become closed due to inflammation, there would still be additional slits available to enhance bile flow.

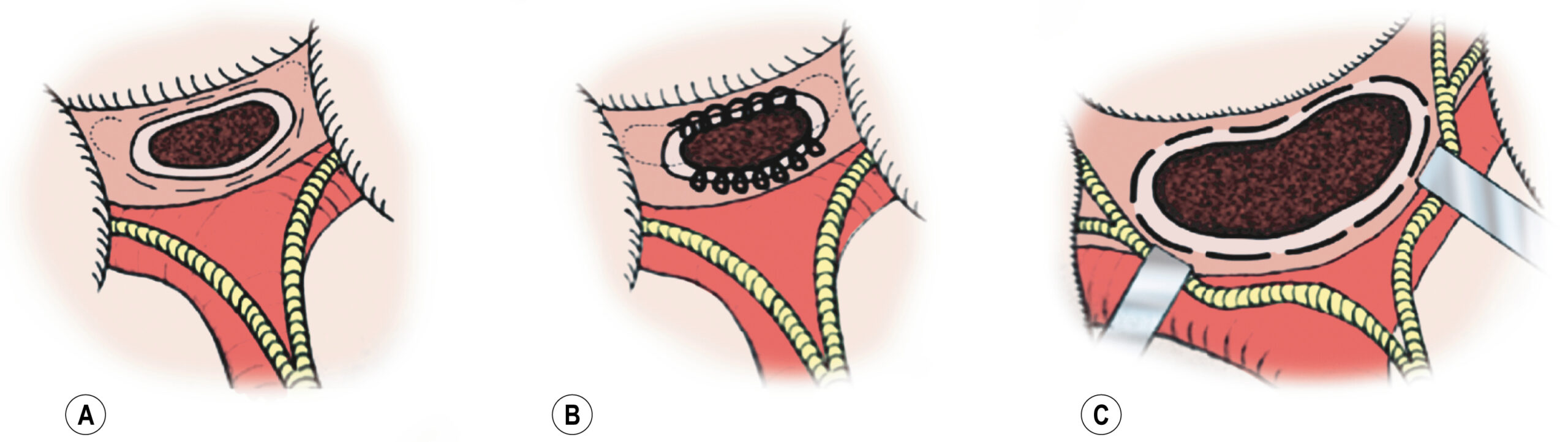

(A). Anterior jejunal wall window from the previous portoenterostomy, exposing the cut surface of the fibrous biliary remnant. (B) Vertical slit incisions, each 2–4 mm in depth, are made in the surface to improve bile flow while preventing injury to tissue that needs to be preserved.
Performing laparoscopic revisions for recurrent and persistent jaundice following a previously successful laparoscopic portoenterostomy in patients with BA who have shown biliary drainage at least once after the initial procedure yielded modest yet favorable outcomes in terms of preserving the native liver. Consequently, there exists potential benefit for certain BA patients to undergo laparoscopic revisions, leading to the retention of their native liver. Laparoscopic redo portoenterostomy can be regarded as a standard second-line therapy for patients with BA who require future liver transplant, because laparoscopic revision does not cause severe postoperative adhesions. Further studies must involve larger numbers of patients and longer follow-up.
Postoperative Management
Corticosteroids
The role of corticosteroids is controversial, but we strongly believe they are choleretic and decrease inflammation and scarring at the anastomotic site. Davenport et al. performed the first randomized, placebo-controlled, double-blinded study using a low-dose 6-week course of oral prednisolone starting at 2 mg/kg/day in BA infants at two centers in the UK. There was a significant reduction in bilirubin levels at 1 month, which was more obvious in those who had portoenterostomy before the age of 70 days, but there was no significant effect on clearance of jaundice at 6 months (47% vs. 49%) or subsequent native liver survival between steroids and placebo groups. They published a follow-up study in 2013, including 44 additional patients treated with high-dose prednisolone starting at 5 mg/kg/day, and found that there was a significant difference in jaundice clearance rates between both low- and high-dose corticosteroid groups and a placebo group (52% vs. 66%, P = .037). However, there was no significant improvement in native liver survival (56% vs. 48%) when comparing the high-dose group to placebo.
The North American Steroids in biliary Atresia Randomized Trial (START) reported that there was a nonsignificant improvement in jaundice clearance at 6 months after hepatoportoenterostomy between both steroid groups and a placebo group (59% vs. 49%), which was higher in the subgroup coming to portoenterostomy at less than 70 days (72% vs. 57%). The START trial reported serious adverse events and did not find an overall difference in the number of events in the steroid compared to the control group but did find that adverse events occurred earlier.
The Japanese Biliary Atresia Society conducted a multiple center randomized trial comparing high-dose and low-dose corticosteroid administration and found that bilirubin was significantly lower in the high-dose group at both 1 and 2 months postoperatively, although long-term outcomes were not reported.
At Juntendo, we have experienced no adverse effects of corticosteroid administration, and this was supported by Davenport’s study.
Antibiotics
Intravenous administration of double agent broad-spectrum antibiotics (usually a cephalosporin and an aminoglycoside) is commenced at the start of surgery and continued postoperatively until C-reactive protein (CRP) is less than 0.3 mg/dL or leukocytosis has resolved. Oral antibiotics may be administered prophylactically according to the surgeon’s preference in the absence of cholangitis.
Cholagogues
In general, the authors continue intravenous fluids and nasogastric aspiration until bowel activity can be confirmed, usually 3–4 days postoperatively. , Careful monitoring of blood glucose levels, electrolytes, and coagulation is important in the early postoperative period. Blood tests, including complete blood count, LFTs, and ChE (serum cholinesterase) are assessed routinely for the first 7 days postoperatively, and then as required. Liver biochemistry (including bilirubin) may well worsen in the first postoperative week, whatever the eventual outcome, and should not be seen as discouraging.
At Juntendo, our standard postoperative protocol includes administration of both cholagogues and corticosteroids. An intravenous cholagogue (usually dehydrocholic acid) is commenced on day 2 after portoenterostomy and continued until jaundice clearance is confirmed (total bilirubin ≤1.5 mg/dL). Oral cholagogues such as ursodeoxycholic acid or aminoethanesulfonic acid are administered once oral feeding is commenced, generally on day 5 after operation, and continued thereafter. Once CRP falls below 1.0 mg/dL, a decreasing dose regimen of prednisolone is begun intravenously. The starting dose is 4 mg/kg/day administered for 3 days, followed by 3, 2, 1, and 0.5 mg/kg/day, each for 3 days. This 15-day cycle can be repeated up to four or five times if there is evidence of clinical benefit such as decrease in total bilirubin or darkening of stools. By about the fourth postoperative week there should be a definite fall in bilirubin and consistently pigmented stools in those who will do well. During the 4 weeks after portoenterostomy, daily monitoring of stool color and CRP is important, because if pigmented stools become pale or CRP increases, the antibiotic regimen may need to be revised. Preventing inflammation at the portoenterostomy site during the first 4 weeks after portoenterostomy is crucial to enable bilioenteric fistulae to develop.
Strict attention to nutritional needs is important, and all postoperative cases require fat-soluble vitamin supplementation that may need to be aggressive in some cases, especially with regard to vitamin K. Medium-chain triglyceride formula milk is advocated to maximize calorie input and facilitate lipid absorption, as this milk is processed by the portal vein and is readily available as a source of cellular energy.
An important feature of the authors’ protocol is that if stools begin to turn pale, the corticosteroid cycle is either recommenced from the beginning or the previous dose is readministered, depending on clinical circumstances. The antibiotic regimen is also usually revised. Should jaundice persist (total bilirubin >1.5 mg/dL) without evidence of apparent clinical benefit, only three cycles of corticosteroids are administered, and the patient is actively considered for liver transplantation. In addition, a recent study at Juntendo explored the effectiveness of using stool color as a monitoring tool for administering prednisolone in patients with BA after undergoing laparoscopic portoenterostomy. It involved 47 patients who received a decreasing dose from our previously described prednisolone protocol. The progression of the prednisolone course was contingent on the observation of normal stools, repeated until jaundice clearance was achieved. An abnormal stool color observed over two consecutive courses prompted considerations for either redo surgery or liver transplantation. The study reported that jaundice clearance was accomplished in 80.9% of the initial cases, with an overall jaundice clearance rate of 89.4% when including redo procedures.
The outcomes varied based on the number of prednisolone courses administered, with jaundice clearance rates ranging from 80% after one course to 100% after five or more courses. The median total dose of prednisolone also increased with the number of courses, from 30.0 mg/kg for one course to 308 mg/kg for 10 courses. These findings indicate that monitoring stool color to guide the administration of prednisolone and the timing for potential redo surgery or liver transplant is an effective strategy. The high jaundice clearance ratio and successful outcomes of redo surgeries or liver transplant, as observed in this cohort, support the utility of stool color as a reliable indicator for managing BA postlaparoscopic portoenterostomy, potentially improving patient outcomes by optimizing the treatment protocol based on individual responses.
Postoperative Complications
Cholangitis
Postoperative cholangitis is a serious setback. It can occur in the early postoperative period, especially before bilioenteric fistulae have developed, and it should not be undertreated. Cholangitis is defined as elevated serum bilirubin (>2.5 mg/dL), leukocytosis, and a change from normal to acholic stools in a febrile patient (>38.5°C). It must be treated by intravenous antibiotics immediately, according to each center’s protocol. Once resolved, prophylactic antibiotics such as sulfamethoxazole/trimethoprim should be administered orally.
Cholangitis is the most common complication after hepatic portoenterostomy, usually seen during the first 2 years after operation and occurring in approximately 40% of infants. Patients with cholangitis present initially with fever, decreased quantity and quality of bile excretion, elevation in serum bilirubin, and signs of infection. Prompt treatment is necessary to prevent liver damage because recurrent attacks cause progressive liver damage. After initial blood cultures, broad-spectrum antibiotics with good Gram-negative coverage should be started and improvement should be rapid. If stools should remain acholic or revert to acholic, a pulse of corticosteroids should be trialed.
It is important to note that cholangitis may also be late-onset and precipitate liver failure, necessitating emergency liver transplantation. Late-onset cholangitis can be fatal even in long-term survivors, which is of particular concern in Japan where the availability of cadaveric donors is limited. Moreover, living donors (parents of siblings) may be inappropriate for long-term survivors because of advanced age or poor health. ,
Cholestasis is the main risk factor for cholangitis, because bile ducts in patients with BA are very small and all conduits should be considered to have become colonized by potentially pathogenic biota within a month of surgery. To decrease the risk for cholangitis, Roux-en-Y biliary reconstruction has been modified by various maneuvers, including lengthening the Roux-en-Y limb from 50 to 70 cm, total diversion of the biliary conduit, creation of an intestinal valve, and the use of a physiologic intestinal valve. The antireflux intussusception valve is probably the modification most likely to result in a reduced rate of cholangitis. In one study, adding a Roux-en-Y anastomosis with a spur valve achieved a high jaundice clearance rate and significantly lowered the number of cholangitis episodes 1 year after surgery. A gallbladder conduit is not recommended when the lumen of the patent duct is narrow or when pancreaticobiliary anomalies are demonstrated on cholangiography. Stomas should be avoided to prevent complicating liver transplantation, which may be required later.
Prophylactic long-term oral antibiotics have been advocated to reduce the recurrence of cholangitis but evidence for their efficacy remains scant, with only one randomized controlled trial in a much younger age group.
Recurrent cholangitis significantly diminishes native liver survival rates in BA patients postportoenterostomy, emphasizing the necessity of prompt and effective cholangitis treatment. Conversely, successful early bile drainage postportoenterostomy is associated with improved native liver survival rates in patients without cholangitis, suggesting its predictive value for long-term outcomes. These findings underscore the importance of comprehensive management strategies to optimize native liver survival in BA patients post-Kasai. Interestingly, there is little information regarding diagnosing cholangitis after Kasai, with no clear guidelines for defining the disease. The Tokyo Guidelines, developed for adults, are not suitable for diagnosing cholangitis in children during the first year after Kasai. Hence, a Delphi process with an international expert panel was held to establish definitions, treatment, and prophylaxis guidelines for cholangitis in the first year after Kasai. That group identified a series of four clinical elements ( List A ), which included fever and/or shivering, stool color change, new/increasing jaundice, and abdominal discomfort. Four laboratory and imaging elements were defined ( List B) : inflammatory response, increased/increasing transaminases, increased/increasing GGT or bilirubin, and the presence of bile lakes. Suspected cholangitis consists of one item from List A and one item from List B. Treatment for suspected cholangitis was recommended for 10–14 days. Confirmed cholangitis includes two items from List A and two items from List B and had a recommended treatment duration of 14–21 days. The choice of antibiotics for treating cholangitis can vary depending on the specific patient’s condition, local antimicrobial resistance patterns, hospital’s protocol, and any known or suspected pathogens. However, some commonly used antibiotics for the treatment of cholangitis include ceftriaxone, piperacillin-tazobactam, ampicillin-sulbactam, ciprofloxacin and metronidazole, gentamicin, and meropenem.
