Introduction
The essential role of the spleen in the defense against bacterial organisms is well documented. King and Schumacker first described the susceptibility of splenectomized infants to infection in 1952. The immunologic role of the spleen led pediatric surgeons to initiate a nonoperative approach to splenic injuries in children, which has evolved into the preferred method for treating children and also adults. In the modern era, splenic surgery is primarily centered on the management of hematologic disorders. The most significant change in management over the past 25 years has been the introduction of laparoscopic splenectomy; in adults by Delaitre and Maignien, and subsequently in children by Tulman and Holcomb. ,
Embryology, Anatomy, and Physiology
The splenic primordium develops as a mesenchymal bulge in the dorsal mesogastrium between the stomach and the pancreas, initially observed at the 8- to 10-mm embryo stage. A true epithelium is noted at the 10- to 12-mm stage as the splenic sinusoids begin to communicate with capillaries. The spleen produces white and red cells by the fourth month of fetal life, although this function ceases later in gestation. The anatomic arrangement of the spleen is consistent with its various functions. The splenic artery branches into segmental vessels, which further branch into trabecular arteries. After further bifurcations, small arteries enter the white pulp, which is composed of lymphocytes and macrophages arranged as a germinal center around the central artery. The central artery delivers particulate material into the white pulp, an arrangement that facilitates antibody formation in response to antigens. The red pulp consists of the endothelial cords of Billroth, which receive the blood after it passes through the white pulp. The red pulp destroys old and defective cells. The spleen also removes Howell–Jolly bodies (nuclear remnants), Heinz bodies (denatured hemoglobin), and Pappenheimer bodies (iron granules). These particles are noted on peripheral smear after splenectomy. The immune response occurs in the white pulp as antigens encounter macrophages and helper T cells. T cells initiate cytokine synthesis, and activated T cells circulate to modulate the response. A humoral response occurs as macrophages and helper T cells contact antigens.
Splenic function also involves removal of particulate matter as well as production of nonspecific opsonins, which further activate the complement system. In addition, the spleen serves as a biologic filter. If little antibody is available for opsonization of bacteria, the spleen assumes a greater role. This may be a factor in the age-related differences in postsplenectomy infections in young children who lack an adequate antibody response. The spleen also serves as a reservoir for platelets and factor VIII.
Anatomic Abnormalities
Asplenia and Polysplenia
Asplenia is often noted with complex congenital heart disease as well as bilateral “right-sidedness” such as bilateral three-lobed lungs, a right-sided stomach, and a central liver (Ivemark syndrome). Intestinal malrotation has also been observed with asplenia. These infants are at risk for severe infection and sepsis and should receive antibiotics for prophylaxis.
Polysplenia usually consists of a cluster of small splenic masses and is often found with biliary atresia. Other associated conditions include a preduodenal portal vein, situs inversus, malrotation, and cardiac defects. In the instance of heterotaxy, the splenic mass(es) are always on one side of the body and along the greater curvature of the stomach. These children have adequate splenic immune function.
Wandering Spleen
Wandering spleen is characterized by a lack of ligamentous attachments to the diaphragm, colon, and retroperitoneum, resulting in a mobile spleen. This is likely due to failure of development of the splenic ligaments from the dorsal mesentery.
This rare condition can present with a variety of symptoms mimicking other abdominal pathologies, which can make diagnosis difficult. Children can present with an abdominal mass and episodic pain, but they can also present acutely with torsion and infarction. , Two cases of portal/mesenteric varices due to a wandering spleen have been reported in adolescent patients, both of which resolved with splenectomy. Pancreatitis has also been noted as a presenting sign. Splenopexy is the preferred method of treatment and can be performed with placement of the spleen into a mesh basket, suture splenopexy, colonic displacement with gastropexy, positioning in an omental basket, or placement in an extraperitoneal pocket. The laparoscopic approach is the preferred technique, and the use of an absorbable or nonabsorbable mesh with fixation in the left upper quadrant is shown in Fig. 46.1 . , Placement of the spleen in an extraperitoneal pocket is shown in Fig. 46.2 . Cases of torsion with infarction require splenectomy. Chronic torsion has also been reported with massive splenomegaly that may necessitate splenectomy.

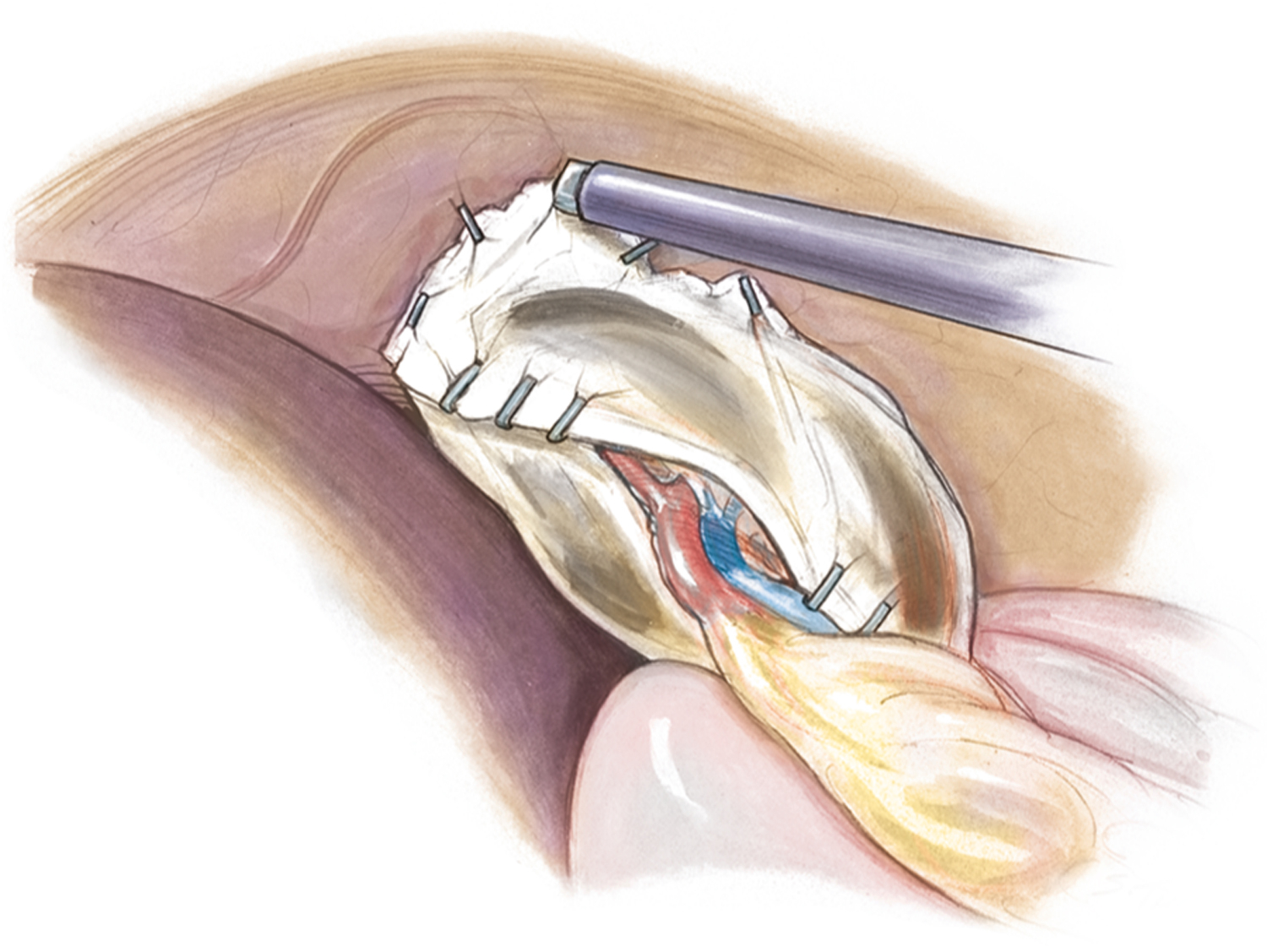

Laparoscopic splenopexy with placement of the spleen between two sheets of absorbable mesh with fixation in the left upper quadrant.
© IUSM Visual Media.
(A) The upper pole of the spleen was placed in the retroperitoneal pouch, and the upper aspect of the pouch ( dotted arrow ) was closed with interrupted sutures. Note the splenic vessels ( solid arrow ) coursing into the spleen. A generous opening was left in the pouch for these vessels so that the vessels would not be compressed by closure of the pouch. (B) One of the interrupted silk sutures is being placed to approximate the peritoneal flaps over the spleen. At this point, most of the spleen has been placed into the extraperitoneal pouch.
From Upadhyaya P, St. Peter SD, Holcomb GW III. Laparoscopic splenopexy and cystectomy for an enlarged wandering spleen and splenic cyst. J Pediatr Surg . 2007;42:E23–E27. Reprinted with permission.
Splenic Gonadal Fusion
Splenic gonadal fusion occurs when the left gonad and the spleen are attached and is a result of early fusion between the two structures prior to descent of the testis. The remnant can be a continuous band or can be discontinuous with splenic tissue attached to the gonad. A splenic remnant has also been noted in the left scrotum as an accessory splenic remnant type of abnormality.
Splenic Cysts
Splenic cysts are categorized into true cysts and pseudocysts. True cysts are lined with epithelium and may be congenital or acquired as a result from a parasitic infection ( Fig. 46.3 ). Splenic pseudocysts have no cellular lining and may arise as a result of trauma, hemorrhage, or inflammation. Patients may present with symptoms related to the size of the cyst, with gastric compression or pain, an abdominal mass, rupture, or infection with an abscess. , Simple cysts less than 5 cm can be observed, but cysts that are enlarging, symptomatic, or larger than 5 cm usually require treatment. Most symptomatic cysts are larger than 8 cm. Percutaneous aspiration and sclerosis utilizing alcohol or other agents have been reported with variable success. , One study demonstrated sclerosis with alcohol caused disappearance in 20% of pediatric patients.
(A) A large epithelial splenic cyst ( arrow ) is seen on the CT scan. (B) At laparoscopy, the large cyst (seen in [A]) is seen to occupy most of the spleen.
Marsupialization can be performed but has been associated with a high recurrence rate if an adequate amount of cyst wall is not removed ( Fig. 46.4 ). Some have suggested marsupialization followed by lining the cyst with Surgicel (Ethicon, Inc., Somerville, NJ) and performing an omentopexy to reduce risk of recurrence. High recurrence rates with laparoscopic partial excision have also been observed. , However, others have reported good success with this technique. Some authors recommend partial splenectomy.
(A) The wall of the large epithelial splenic cyst seen in Fig. 47.4 is being excised. (B) The cyst was marsupialized, and the remnant lining of the cyst was ablated with the argon beam coagulator.
Indications for Splenectomy
Hereditary Hemolytic Anemias
Hereditary hemolytic anemias are a group of disorders including hereditary spherocytosis, sickle cell disease, thalassemia, and pyruvate kinase deficiency and are characterized by damaged red blood cells via a variety of mechanisms. Damaged red blood cells are removed by splenic macrophages, making splenectomy a potential treatment strategy in the management of severely affected patients. The benefit of splenectomy is well-documented in patients with hereditary spherocytosis but is not as clear for other anemias in this group. A summary of splenectomy recommendations for these hemolytic disorders is included in Table 46.1 .
Table 46.1
Splenic Conditions and Indications for Splenectomy
| Diagnosis | Indications for Splenectomy | Other Considerations |
|---|---|---|
| Hereditary spherocytosis |
Consider in moderate disease
Recommended in severe disease |
Splenomegaly common
With cholecystectomy if cholelithiasis present |
| Sickle cell disease |
Recommended after two acute splenic sequestration crises
Massive splenomegaly and/or hypersplenism |
|
| Thalassemia | Severe and/or transfusion-dependent anemia | |
| Pyruvate kinase deficiency | Severe and/or transfusion-dependent anemia | With cholecystectomy |
| Immune thrombocytopenic purpura |
No response to first- or second-line medical therapy
Complications from long-term medical therapy |
|
| Gaucher disease | Massive splenomegaly and/or hypersplenism | |
| Splenic abscess |
Consider if multiple or persistent abscesses
Failure to respond to conservative treatments Rupture of abscess |
Hereditary Spherocytosis
Hereditary spherocytosis (HS), an autosomal dominant condition, is the most common inherited red cell disorder among Northern European descendants, with approximately 25% of affected children representing new mutations. Defects in red cell proteins ankyrin or spectrin result in poorly deformable spherocytes. Most affected children have anemia, an elevated reticulocyte count, and a mild elevation in bilirubin. The degree of hemolysis can vary, with some only having mild anemia. The diagnosis is confirmed with the findings of spherocytes on peripheral smear along with a positive osmotic fragility test. Affected children can develop an aplastic crisis associated with parvovirus B19 infection with suppression of the bone marrow red cell production and ongoing splenic red cell destruction. Splenomegaly is common in these patients.
Splenectomy is the standard treatment for patients with moderate-to-severe disease. Total splenectomy is very effective in reducing hemolysis and increasing hemoglobin levels. As a significant percentage of children with HS will develop pigmented gallstones in the first decade of life, symptomatic cholelithiasis may also be a reason for proceeding with splenectomy (with cholecystectomy). There is generally no indication for cholecystectomy in patients undergoing splenectomy who do not have evidence of cholelithiasis.
Partial splenectomy has become an increasingly popular alternative to total splenectomy for treatment of HS, especially in younger children due to the concern for postsplenectomy infection. There is increasing evidence that partial splenectomy may preserve some splenic function in addition to the hematological benefits in children with HS. Further study is needed to adequately compare surgical techniques and assess long-term outcomes.
Sickle Cell Disease
Sickle cell disease (SCD) results from an amino acid substitution in the β-chain of hemoglobin A, which results in hemoglobin S. Children may be homozygous or have less severe heterozygous types such as sickle C or sickle thalassemia. These red blood cells become rigid as they pass through the hypoxic environment of the spleen, leading to splenic sequestration.
An acute splenic sequestration crisis can be a life-threatening complication and typically presents with abdominal pain, splenomegaly, acute worsening of anemia, and a high reticulocyte count. Due to the associated morbidity and mortality, severe or recurrent episodes merit consideration for splenectomy. Hypersplenism is the second major indication for splenectomy in these children and has a more insidious onset characterized by chronic splenomegaly, anemia, and thrombocytopenia. Although splenectomy does not appear to significantly improve hematologic parameters, it has been shown to have a greater effect on clinical symptoms by reducing transfusion dependence and reducing sequestration. ,
Thalassemia
The thalassemias are characterized by abnormal production of the α or β chains of hemoglobin. Thalassemia major (β-thalassemia) is associated with the most severe clinical anemia among this group. Splenomegaly causes further red cell sequestration and the need for transfusion. Total or partial splenectomy is performed to decrease the need for transfusions in children with severe anemia.
Immune Thrombocytopenic Purpura
Immune thrombocytopenic purpura (ITP) occurs due to antiplatelet autoantibodies, which subsequently are destroyed in the spleen. In most children, it is primary (idiopathic), and in some it may be secondary to lupus, human immunodeficiency virus, malignancy, or hepatitis C infection. Most children (80%) have acute ITP that resolves with observation or medical management. Most treatment plans target a decrease in platelet destruction. Management includes corticosteroids, which may have their effect by inhibiting the reticuloendothelial binding of platelet/antibody complexes; intravenous immunoglobulin (IVIG), which inhibits the Fc receptor binding of platelets by macrophages; or Rho(D) immunoglobulin in Rh-positive children, which binds red cells that then saturate the splenic receptors, allowing the platelets to avoid destruction.
Many cases of ITP resolve spontaneously, but 20% of children will have prolonged thrombocytopenia leading to chronic ITP, and traditionally would require surgery. With the expanding medical therapies for ITP such as rituximab and thrombopoietin receptor agonists, surgery is required less frequently. However, splenectomy remains a safe and effective treatment. Laparoscopic splenectomy has been shown to induce a complete response in up to 74% of patients. Additionally, complications from the long-term use of medical therapies are an indication for splenectomy ( Table 46.1 ).
Gaucher Disease
Gaucher disease is characterized by a deficiency of the enzyme β-glucocerebrosidase, resulting in excessive glucocerebroside in the macrophages of the spleen, liver, bone marrow, and lungs. Splenomegaly may be severe, and both partial and total splenectomy have been utilized to alleviate the symptomatic hypersplenism and decrease the destruction of the red blood cells, leukocytes, and platelets ( Table 46.1 ).
Splenic Abscess
Splenic abscess (SA) is rare in children. Immunocompromised states, systemic disease, and trauma are recognized as predisposing factors for SA. The most common organisms isolated from cultured abscesses staphylococci, streptococci, Salmonella , and Escherichia coli . Fungi and mycobacteria may be more common in immunocompromised patients. , Infectious etiologies such as tuberculosis, enteric fever, and parasitic infections can be seen in developing countries. Patients typically present with nonspecific symptoms such as fever and abdominal pain and diagnosis is made by ultrasound or computed tomography (CT) scan. Historically, definitive treatment with splenectomy and antibiotics was standard in adults and is still favored by some. However, over the last two decades various combinations of antibiotic therapy, percutaneous drainage, open drainage, and partial or total splenectomy have been described as treatment modalities for SA. There is no widely accepted consensus on management of SA in the pediatric population. There are several reports of children with SA successfully treated with antibiotic therapy and percutaneous drainage, even in children with multiple SAs. Because of the importance of its immunologic function, spleen-sparing modalities are generally recommended when possible, and splenectomy is reserved for those who fail initial treatment or after rupture of SA ( Table 46.1 ).
Splenectomy
Perioperative Considerations
Perioperative Vaccination
Infection is a major, and potentially fatal, risk in postsplenectomy patients. This risk may vary according to splenectomy indication and is particularly high in younger children. It is therefore recommended to defer splenectomy until a child is over 5 years of age if possible. Vaccination against the main encapsulated organisms ( Pneumococcus , Meningococcus , and Hemophilus Influenzae ) is the most effective prevention strategy to decrease the risk of postoperative infection. When possible, patients should receive vaccinations 2 weeks prior to splenectomy. For emergency cases, it is recommended that patients be vaccinated 2 weeks after surgery.
Accessory Spleens
Regardless of the approach, care must be taken to identify an accessory spleen when present. A missed accessory spleen at the time of planned total splenectomy can lead to recurrence of the primary disease process. Accessory spleens have been noted in 15%–30% of children, with a large series noting a 19% rate. Accessory spleens likely originate from mesenchymal remnants that fail to fuse with the main splenic mass. Most (75%) are located near the splenic hilum ( Fig. 46.5 ). Other locations that should be evaluated at the time of splenectomy include the lesser sac along the splenic vessels, omentum, and retroperitoneum. When found, most (86%) accessory spleens are single, 11% have two, and 3% have three or more. ,
In this child undergoing a laparoscopic splenectomy, two accessory spleens ( arrows ) are seen near the inferior edge of the spleen.
Operative Technique
Open Splenectomy
Open splenectomy (OS) is performed through a left upper quadrant incision and is typically utilized in cases of massive splenomegaly. The initial division of the splenorenal, splenocolic, and splenophrenic ligaments allows the spleen to be mobilized from the left upper quadrant and out of the abdominal cavity. The gastrosplenic ligament and short gastric vessels are divided, followed by the hilar vessels. A careful search must be undertaken for accessory spleens.
Laparoscopic Splenectomy
Laparoscopic splenectomy (LS) has evolved over the last two decades to become the preferred approach for elective splenectomy. , However, it is associated with longer operative times and can be difficult in patients with splenomegaly. Concerns remain regarding the risk of bleeding and the ability to adequately assess for accessory spleens. Several recent studies and meta-analyses have not only confirmed the safety and efficacy of LS but have also shown no difference in accessory spleen detection or postoperative complications when compared to OS in pediatric patients. Furthermore, although individual studies vary, large meta-analyses have reported less intraoperative blood loss and shorter hospital stays in pediatric patients undergoing LS. , While massive splenomegaly can certainly limit exposure and increase technical difficulty, improving laparoscopic devices and techniques and increasing surgeon experience have led to widespread utilization of laparoscopy regardless of the size of the spleen. Boxes 46.1 and 46.2 list the potential advantages for each approach cited in the literature.
BOX 46.1
Open Splenectomy
-
Potentially better exposure if splenomegaly present
-
Potentially easier to detect accessory spleens
BOX 46.2
Laparoscopic Splenectomy Shorter Hospitalization
-
Less postoperative pain
-
Less blood loss
-
Better cosmesis
Most surgeons utilize a lateral approach with slight elevation of the left flank. The operating table is tilted to the patient’s left for the port placement and then is tilted to the patient’s right side to achieve a lateral position for the procedure. The surgeon and assistant stand on the patient’s right. The incisions may be placed in several configurations according to surgeon preference. One option is shown in Fig. 46.6 . This technique uses three trocars. The first assistant may use a fourth upper midline instrument to provide elevation of the spleen and traction on surrounding tissues.

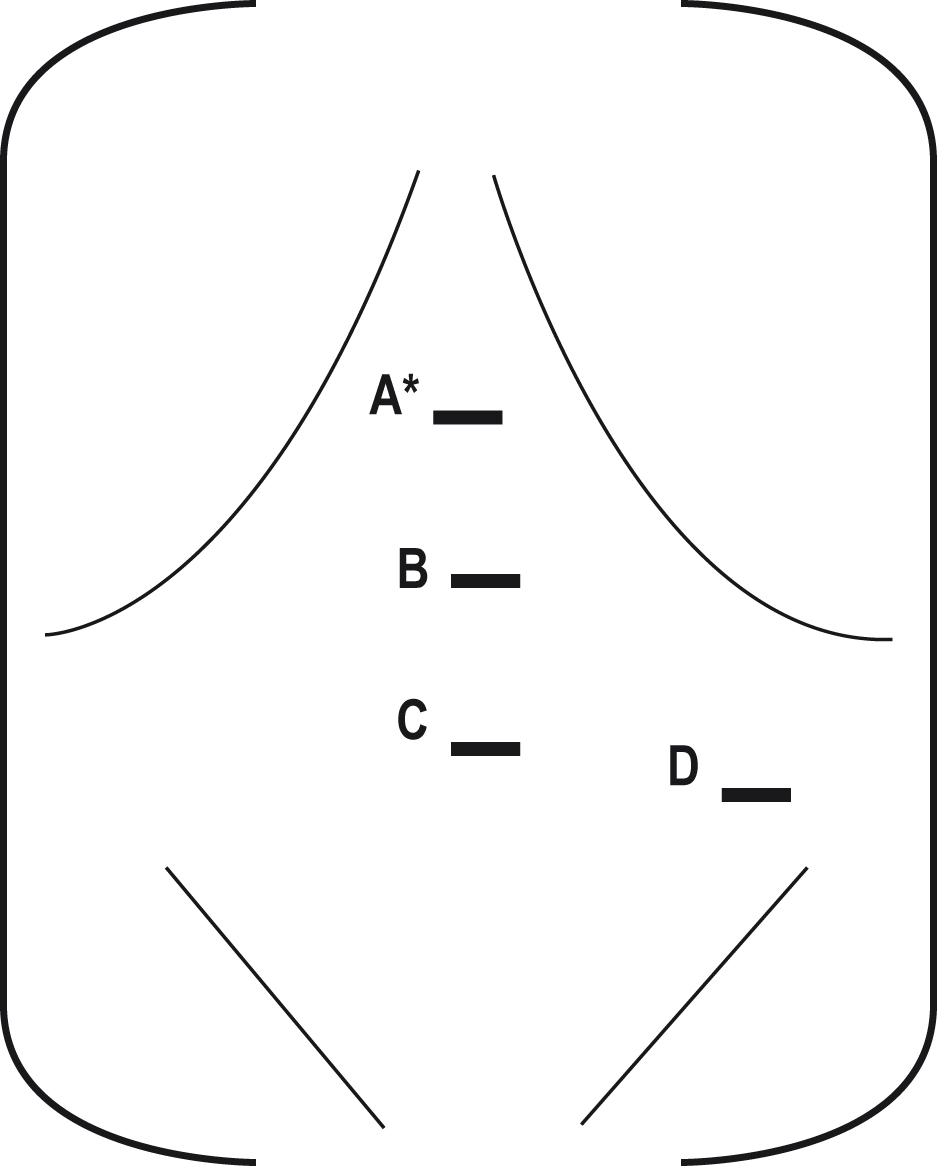

Port placement for laparoscopic splenectomy. (A) ∗Optional, 5-mm epigastrium for additional retraction if needed; (B) 5-mm upper midline; (C) 5-mm umbilical, upsized to 15-mm for specimen removal; (D) 5-mm left lower quadrant.
Initially, the splenocolic ligament is divided with an energy device, allowing the splenic flexure to fall away from the spleen. The inferior portion of the gastrosplenic ligament is divided, and the surgeon works in a cephalad direction dividing the short gastric vessels and opening the lesser sac ( Fig. 46.7 ). The most superior short gastric vessels are often very short, and care must be taken to avoid injury to the stomach or diaphragm. The lesser sac should be inspected for the presence of accessory spleens. The splenophrenic ligament is divided to fully mobilize the upper pole of the spleen. Lateral attachments may also be kept intact to hold the spleen in its anatomical position and facilitate dissection. At this point, the hilum is divided using an endovascular stapler or energy device, based on surgeon preference and anatomic findings. Alternatively, the hilar vessels may be individually dissected and ligated. If a stapler is utilized, it is often easiest to divide the splenorenal ligament to allow easy access to the entire hilum ( Fig. 46.8 ). Care must be taken to avoid injuring the tail of the pancreas, which is in close proximity. Any additional attachments to the spleen are then divided.
After division of the short gastric vessels using the ultrasonic scalpel, the lesser sac is entered. In the operative photograph, the stomach is being retracted by the assistant’s instrument ( solid arrow ). The ultrasonic scalpel, at the bottom of the photograph, is approaching one of the intact short gastric vessels ( dotted arrow ). The pancreas is marked with an asterisk.
From Rescorla FJ. Laparoscopic splenectomy. In: Holcomb GW III, Georgeson KE, Rothenberg SS, eds. Atlas of Pediatric Laparoscopy and Thoracoscopy . Elsevier; 2008:121–126. Reprinted with permission.
Once the spleen has been mobilized and is attached only through the hilar vessels, the camera is rotated to the left lower quadrant port and the stapler is introduced through the umbilical port. It is then placed across the hilar vessels, taking care not to incorporate a portion of the pancreas in the tissue to be divided. In the operative photograph, note that the splenic artery has been ligated with clips ( arrow ) before hilar division because the spleen was extremely large.
From Rescorla FJ. Laparoscopic splenectomy. In: Holcomb GW III, Georgeson KE, Rothenberg SS, eds. Atlas of Pediatric Laparoscopy and Thoracoscopy . Elsevier; 2008:121–126. Reprinted with permission.
